- Overview

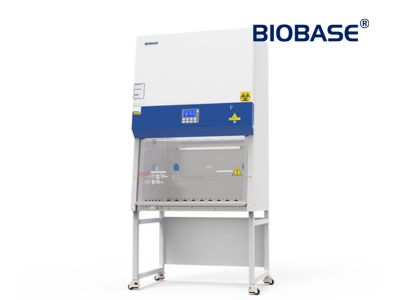

EN Class II A2 Biological Safety Cabinet BSC-3FA2 BSC-4FA2
Brand: BIOBASE
Product origin: CHINA
Model: BSC-3FA2 BSC-4FA2
Introduction:
The EN Class II A2 Biosafety Cabinet is a crucial piece of laboratory equipment designed to provide a safe working environment when handling biological materials that pose a moderate risk to the user and the environment.
- Features
- Technical Parameters
1. Large LCD display, all information displayed.
2. Automatic air speed adjustable with filter block.
3. With memory function in case of power-failure.
4. Side&back wall is made up of single piece stainless steel.
5. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.
6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
| Model | BSC-3FA2 | BSC-4FA2 | |
|---|---|---|---|
| External Size(W*D*H) | 1087*775*2265mm | 1383*775*2295mm | |
| Internal Size(W*D*H) | 910*600*660mm | 1210*600*660mm | |
| Work Surface Height | 750mm | ||
| Max Opening | 520mm(21") | 550mm(22") | |
| Tested Opening | Safety height 200mm(8") | ||
| Airflow Volume | Inflow | 348m³/h(205cfm) | 462m³/h(272cfm) |
| Down Flow | 65%: 649m³/h(382cfm) | 65%: 863m³/h(507cfm) | |
| Exhaust | 35%: 348m³/h(205cfm) | 35%: 462m³/h(272cfm) | |
| Front Window | Manual. Laminated toughened glass. Anti UV | ||
| HEPA Filter | Two, 99.995% efficiency at 0.3μm, filter life indicator | ||
| Filter Guard Type | Aluminum alloy frame | ||
| Noise | EN12469 ≤65dB | ||
| Illumination | ≥1000Lux | ||
| Display | LCD display | ||
| Waterproof Socket | 2, total consumption: ≤500W | ||
| Tap | Water tap*1, Gas tap*1 | ||
| Ground Resistance | ≤ 0.10Ω | ||
| Power Supply | AC230V, 50Hz | ||
| Consumption | ≤550W | ≤650W | |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | ||
| Motor | AC motor, 230V acceptable, speed adjustable, high efficiency and low power consumption | ||
| Material |
Working area: 304 stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating |
||
| UV Lamp | 20W | 30W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination, UV timer, UV life indicator | |||
| LED Lamp | 10W*2 | 18W*2 | |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless steel I.V. bar with 10 hooks, Remote control | ||
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Motorized front window | ||
| Package Size(W*D*H) | 1240*1060*1900mm | 1540*1080*1900mm | |
| Gross Weight | 270kg | 340kg | |
